Description

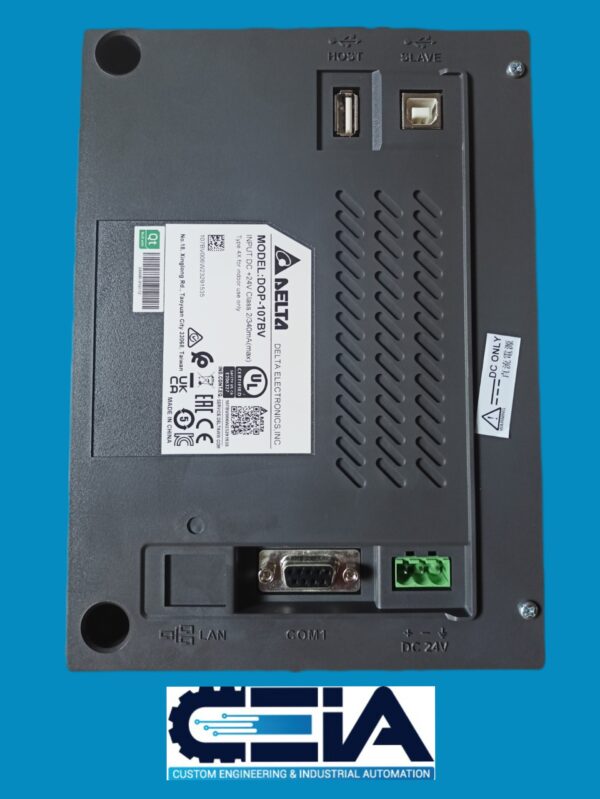

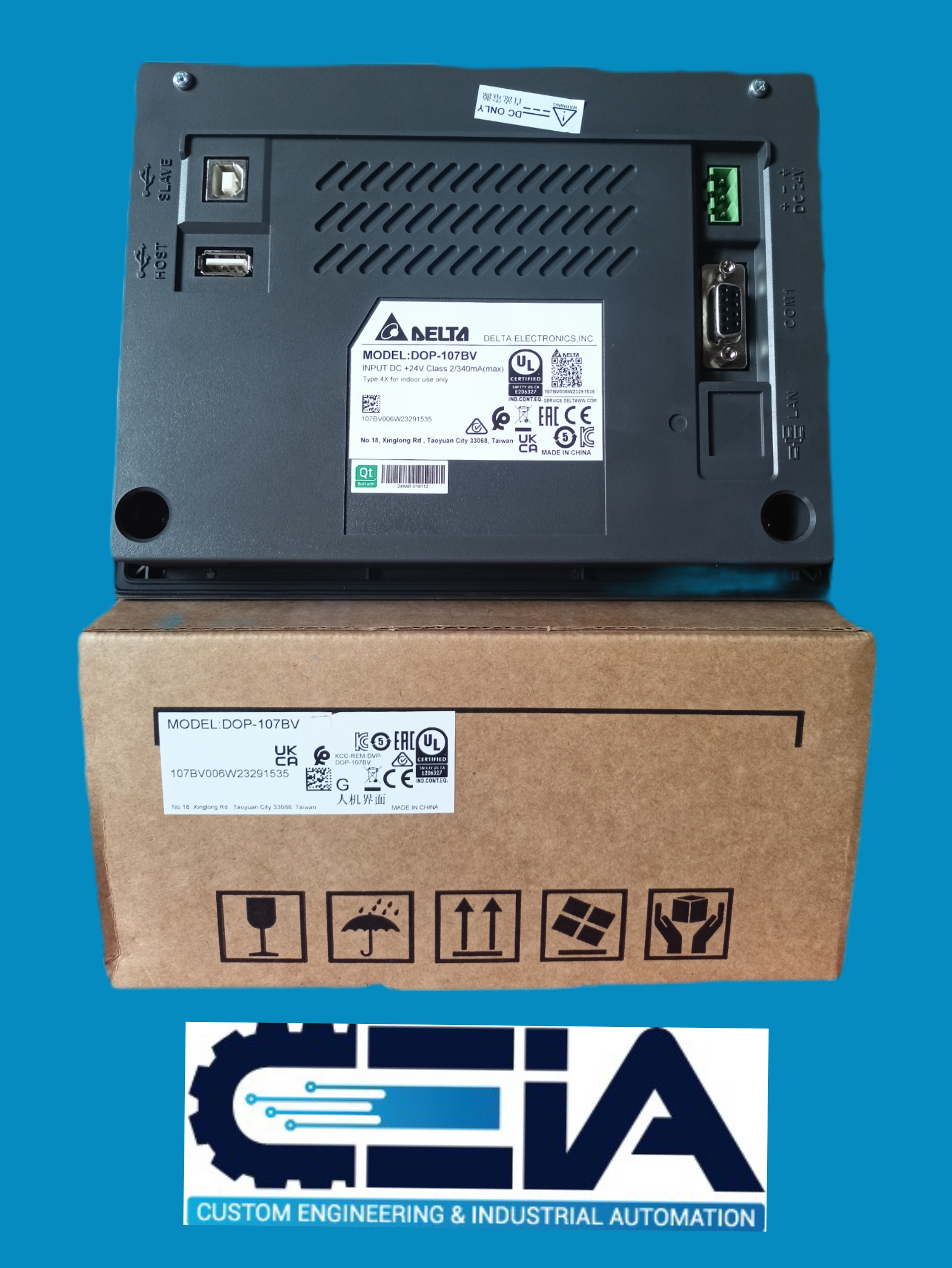

The Delta DOP-107BV is a compact and cost-effective Human Machine Interface (HMI) from
Delta Electronics. Designed for industrial automation applications, this HMI module provides an
intuitive and user-friendly interface for monitoring and controlling machines and processes. It is
part of Delta’s DOP-100 series, offering advanced functionality, flexibility, and connectivity at
an affordable price.
Key Features:
1. Display:
Screen Size: 7 inches, providing a clear and spacious interface for visualizing data.
Resolution: 800 × 480 pixels (WVGA) for sharp and vibrant graphics.
Display Type: TFT LCD with 65,536 colors, ensuring excellent color reproduction and
clarity.
Touchscreen: Resistive touch panel for accurate and responsive input.
2. Processor and Performance:
Equipped with a high-performance Cortex-A8 processor running at 800 MHz, ensuring
smooth and efficient operation.
3. Memory:
Flash Memory: 256 MB for storing application programs, graphics, and data.
RAM: 256 MB to support fast data processing and multitasking.
4. Communication Interfaces:
RS-232/RS-485: Built-in serial communication ports for connecting with various PLCs and
other devices.
Ethernet Port: Enables network communication and integration with SCADA systems or
other HMIs.
5. Software Compatibility:
Configured using Delta’s DOP Soft programming software, which supports user-friendly
development of graphical interfaces, alarms, and communication setups.
6. Advanced Functions:
Multiple Language Support: Facilitates deployment in diverse regions.
Data Logging: Records and stores operational data for analysis.
Alarm Management: Alerts users of abnormal conditions in real-time.
Macros: Supports custom scripts for advanced control and automation.
Recipe Management: Simplifies product or process parameter changes.
7. Design and Durability:
Compact Design: Slim and lightweight, ideal for space-constrained installations.
Mounting: Panel-mount design for easy and secure installation.
Durability: Built to operate reliably in industrial environments, with a rugged design and
wide operating temperature range.
8. Applications:
Suitable for a wide range of industrial automation applications, including:
▪ Machine control
▪ Process monitoring
▪ Packaging equipment
▪ HVAC systems
▪ Conveyor systems
Technical Specifications:
• Model: DOP-107BV
• Display Size: 7 inches
• Resolution: 800 × 480 (WVGA)
• Processor: Cortex-A8, 800 MHz
• Memory: 256 MB Flash, 256 MB RAM
• Communication Ports: RS-232, RS-485, Ethernet
• Power Supply: 24V DC (±15%)
• Dimensions: Compact design for efficient panel mounting.
Key Benefits:
• High-resolution display for clear visualization of data and processes.
• Flexible communication options for seamless integration with PLCs and other devices.
• Cost-effective solution for small-to-medium automation projects.
• User-friendly programming interface with advanced customization features.
The Delta DOP-107BV is an excellent HMI solution for industrial automation applications,
combining reliability, performance, and affordability to meet the needs of diverse industries.
