Description

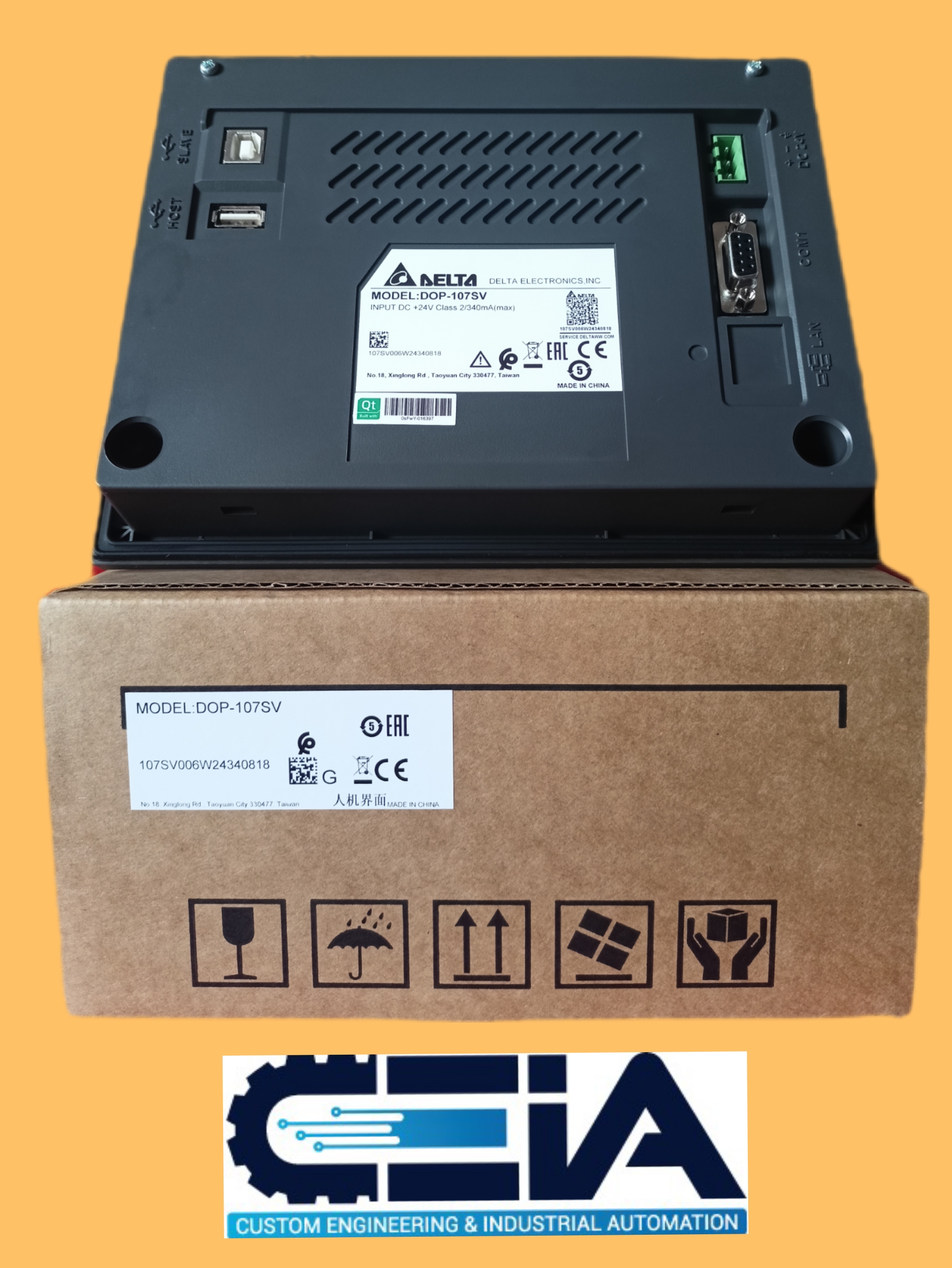

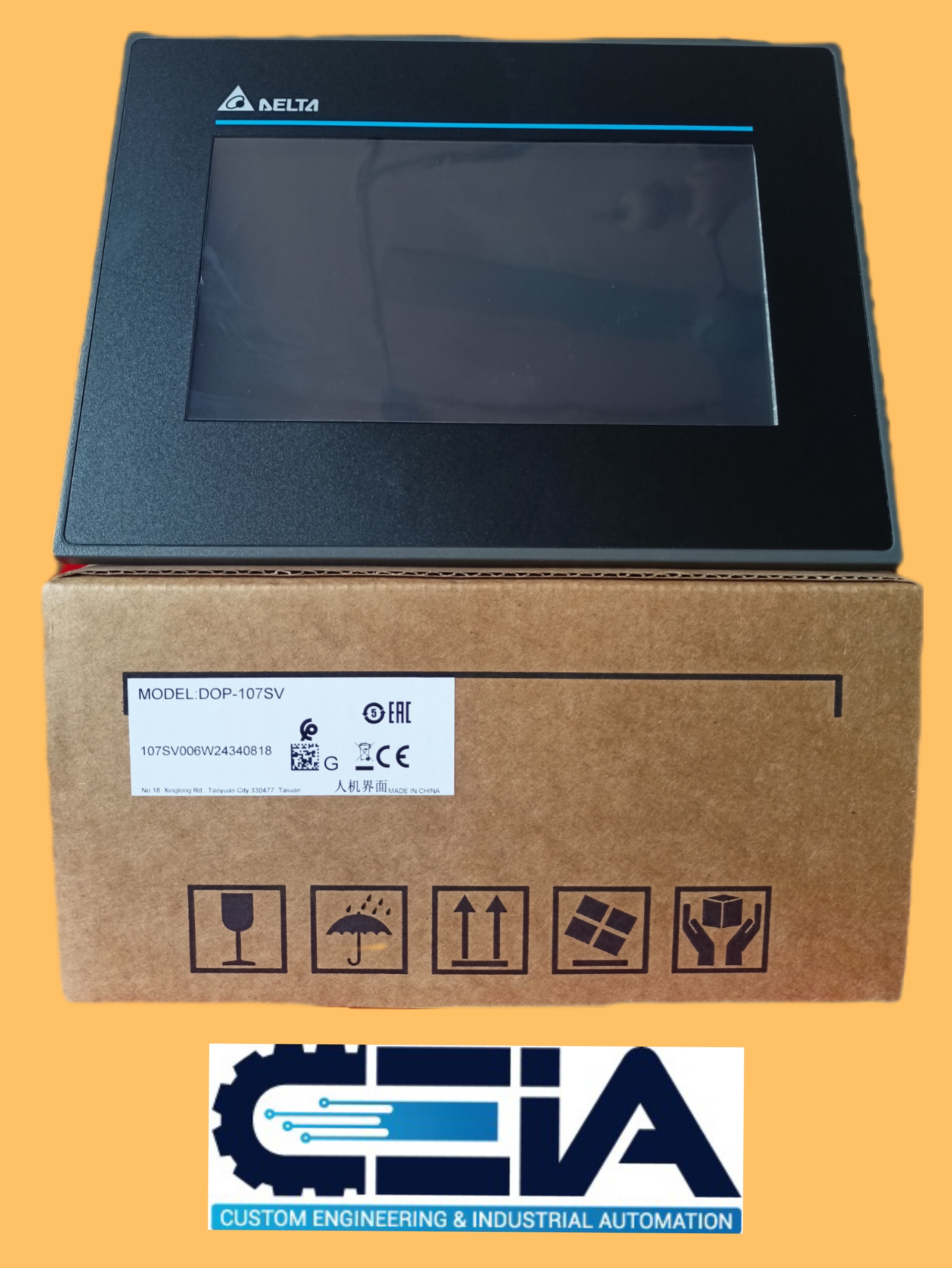

The Delta DOP-107SV is a 7-inch Human-Machine Interface (HMI) designed for seamless
communication and control in industrial automation applications. It is part of Delta’s DOP-100
Series, known for its reliability, performance, and advanced features.
Key Features:
1. High-Resolution Display:

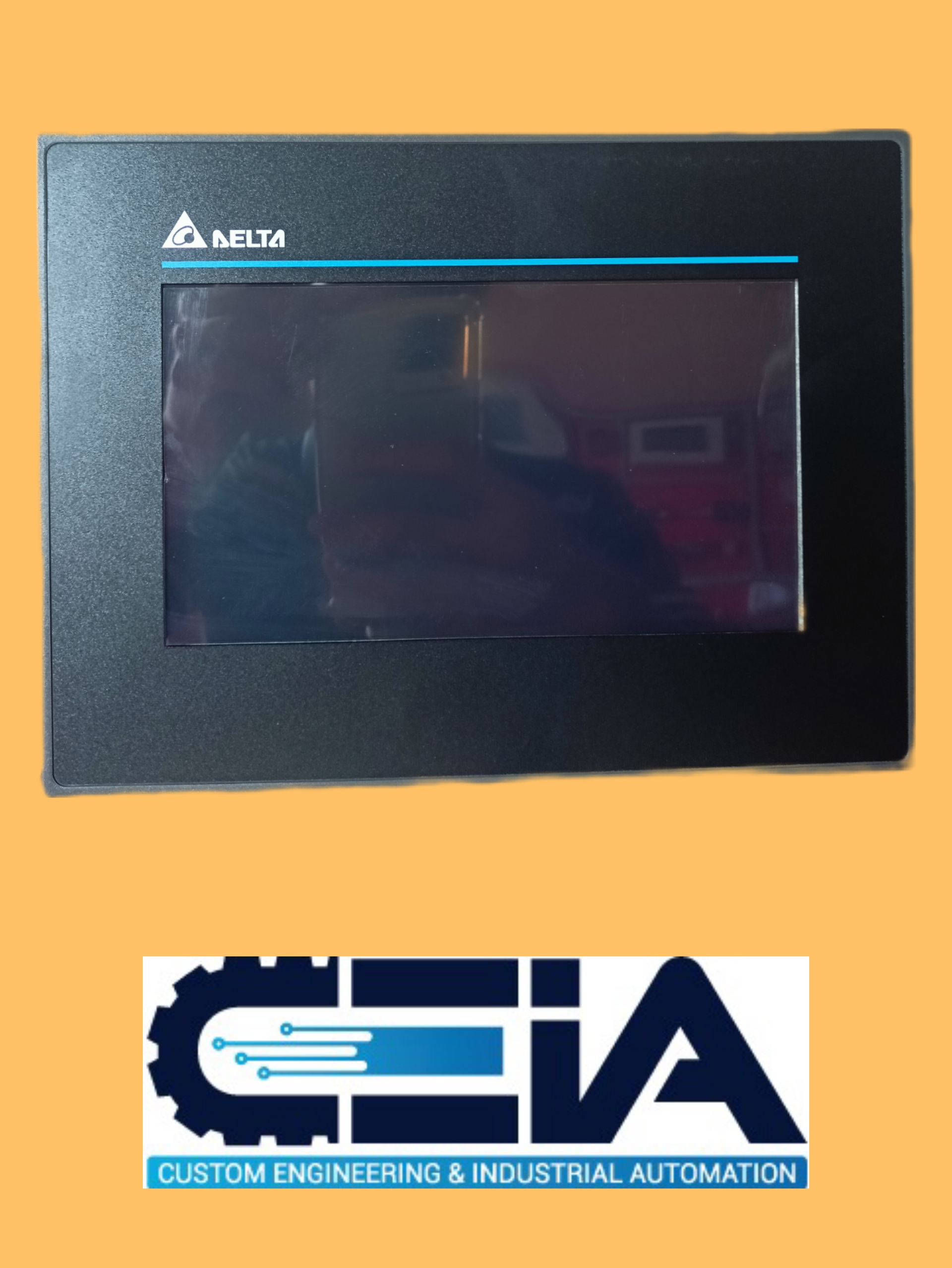

• 7-inch TFT LCD touchscreen.
• Resolution: 800 x 480 pixels (WVGA).
• Displays vibrant colors and detailed images for better monitoring.
2. User-Friendly Operation:
• Touchscreen interface for intuitive operation.
• Supports multiple languages and customizable UI.
3. Powerful Performance:
• High-speed Cortex-A8 processor for smooth and efficient operation.
• Ideal for real-time monitoring and control.
4. Robust Connectivity:
• Multiple communication interfaces: Ethernet, RS232, RS485, USB.
• Supports industrial protocols like Modbus RTU/ASCII/TCP and more.
• Compatible with a wide range of PLCs and automation devices.
5. Compact Design:
• Slim and lightweight construction.
• Designed for easy panel mounting in control systems.
6. Software Integration:
• Compatible with Delta’s DOPSoft software for programming and interface customization.
• Allows easy design of layouts, animations, and control features.
7. Built for Industrial Use:
• Withstands harsh environments with durable construction.
• Wide operating temperature range and reliable operation.
8. Expandable Storage:
• Includes USB and SD card slots for data storage and program backups.
Technical Specifications:
• Screen Size: 7 inches.
• Resolution: 800 x 480 pixels.
• Power Supply: 24V DC.

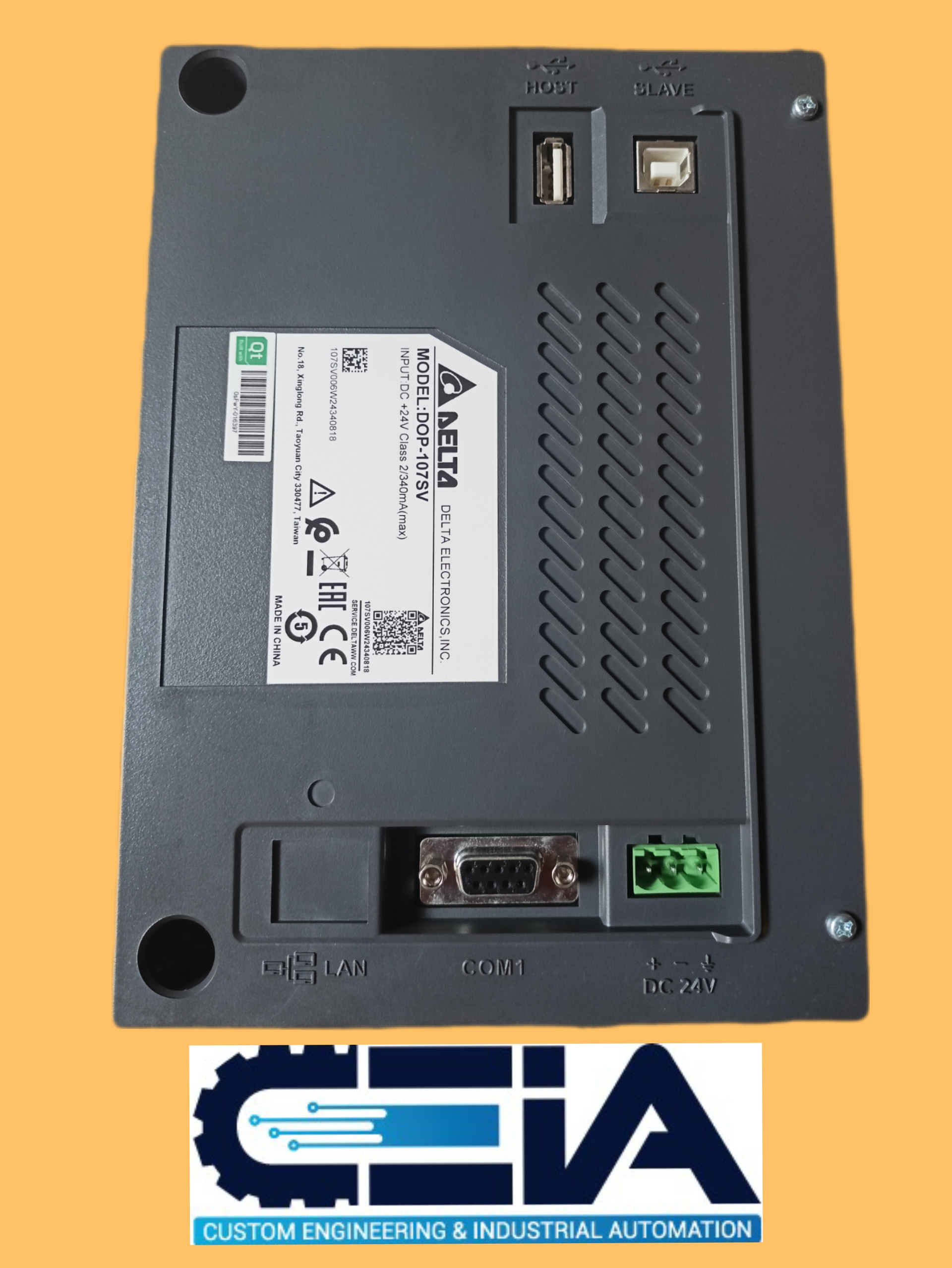

• Interfaces: Ethernet, USB host, USB device, RS232, RS485.
• Software: Delta DOPSoft (for designing and configuring the HMI).
Applications:
The DOP-107SV is commonly used in industries like manufacturing, packaging, food
processing, and more. It provides operators with real-time monitoring and control over
processes, ensuring efficient and accurate operations.
