Description

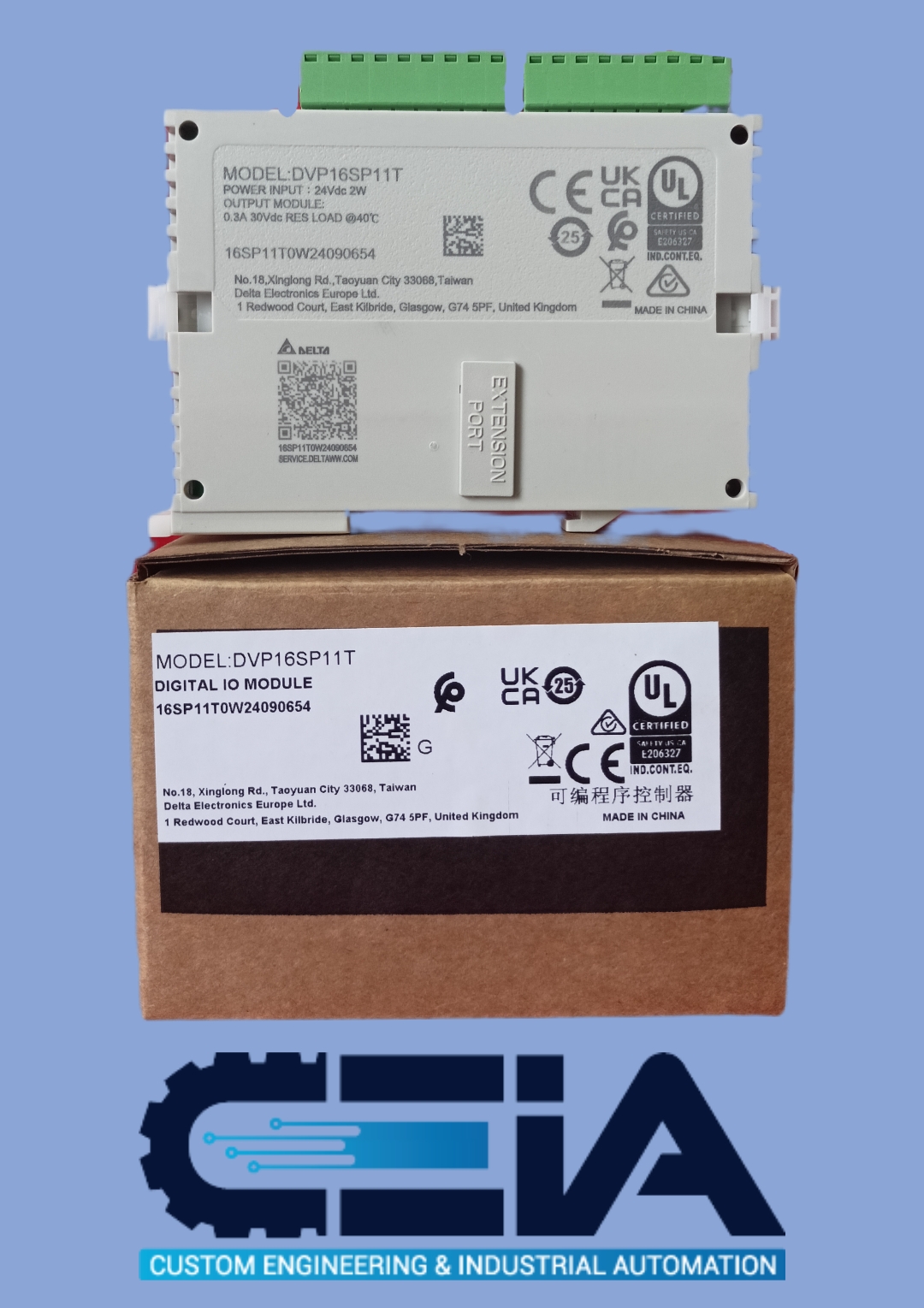

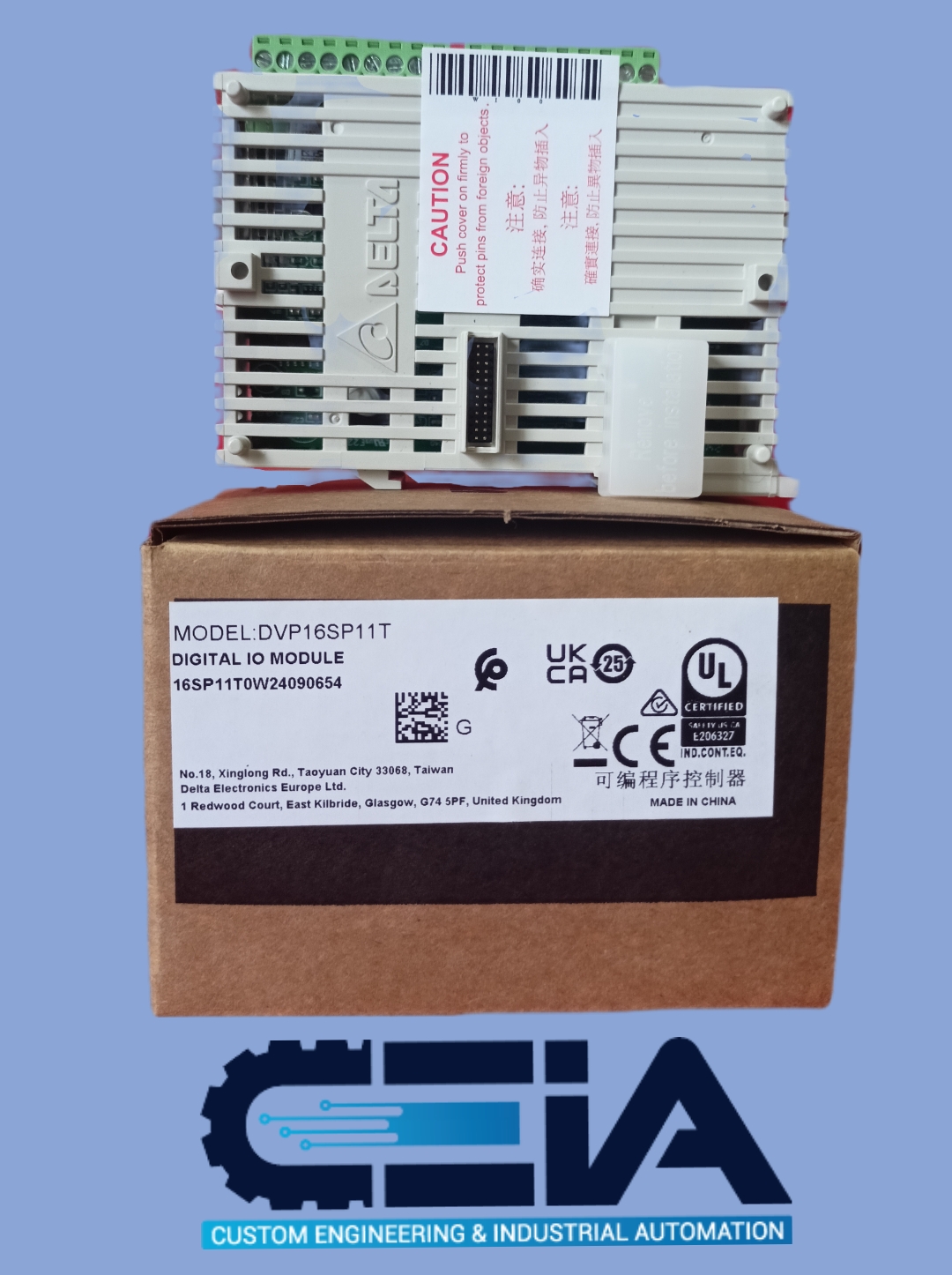

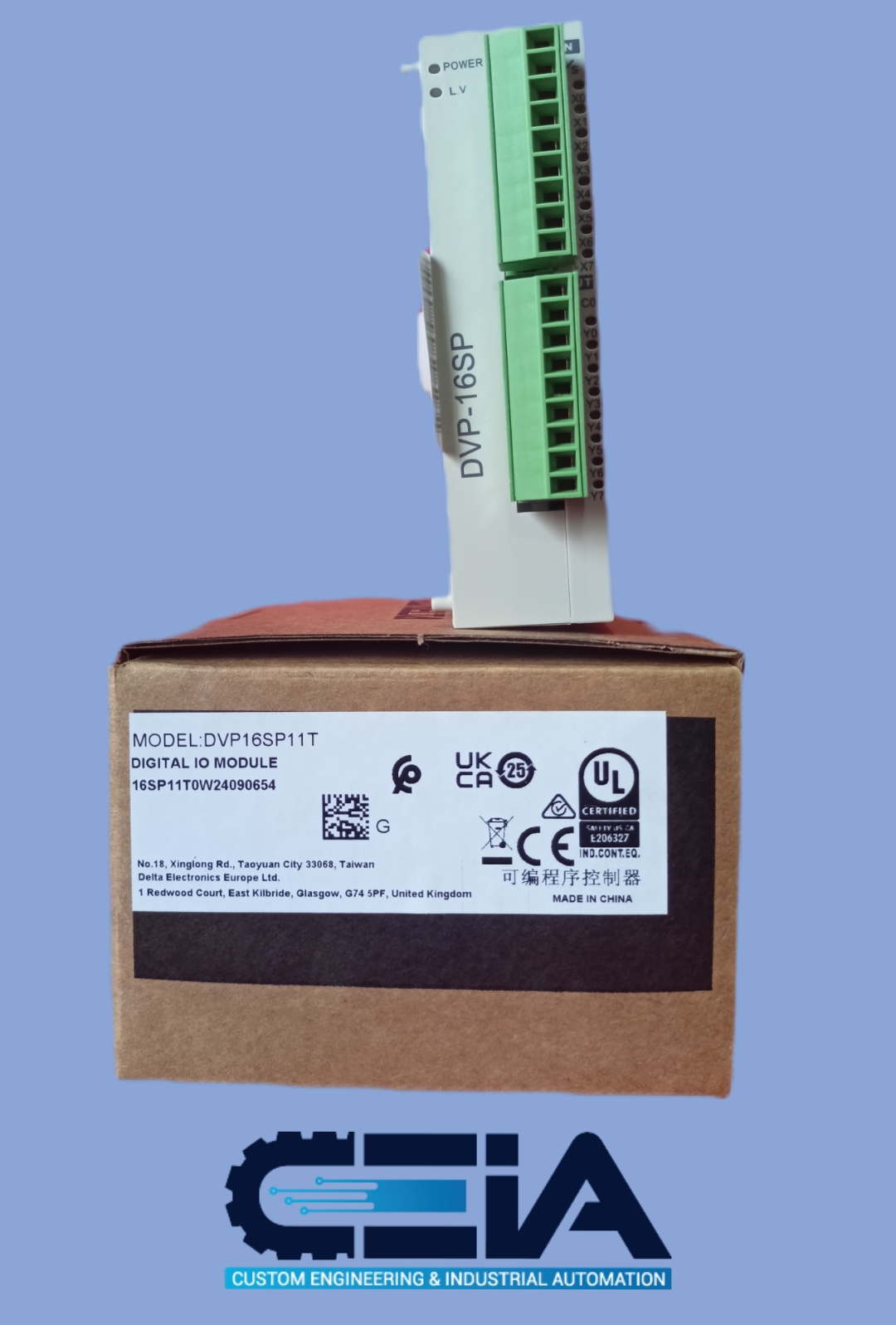

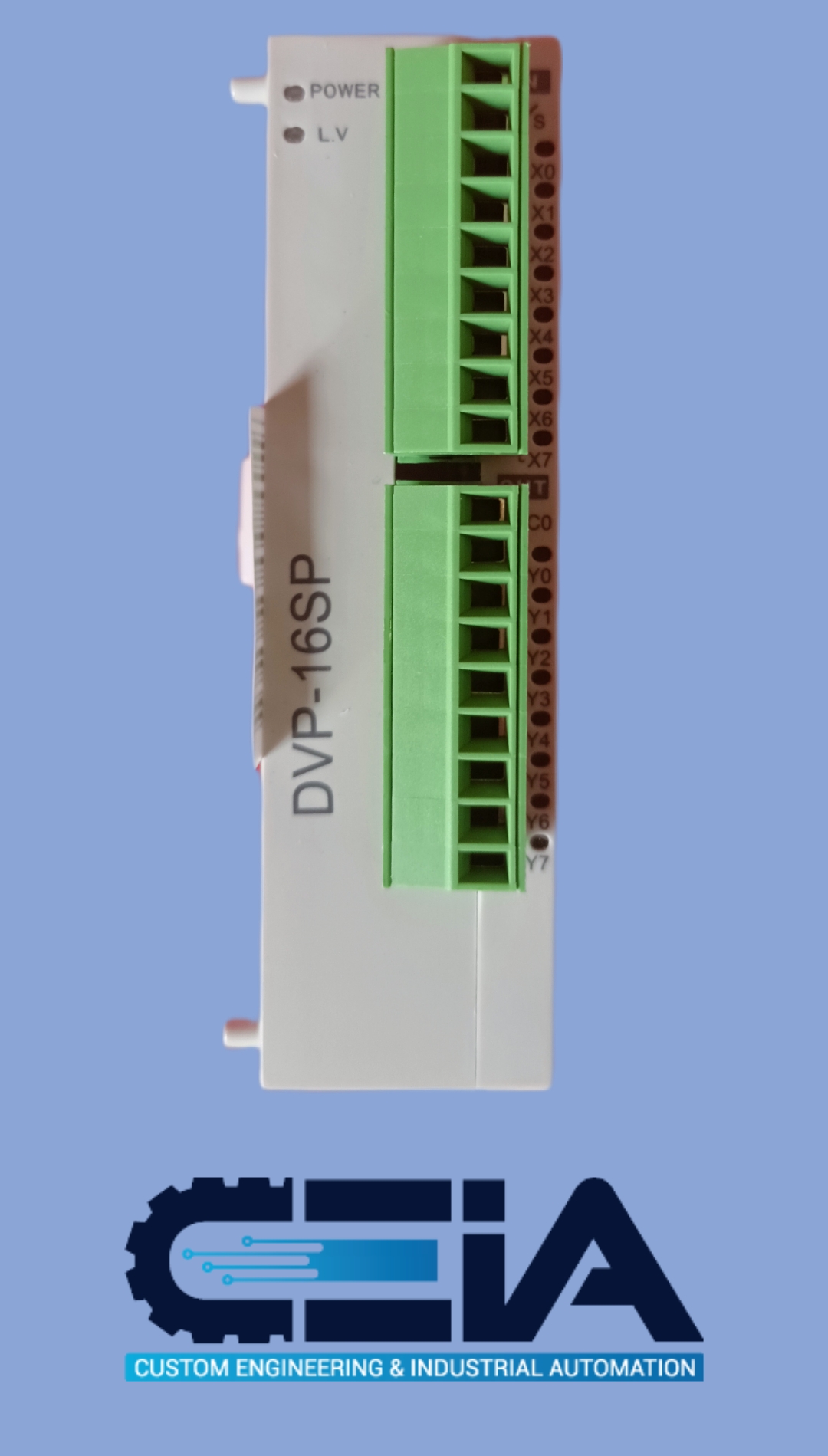

The Delta DVP16SP11T is a compact and efficient programmable logic controller (PLC)
module from Delta Electronics’ DVP-S series. This model is designed for small-scale
automation applications that require faster processing and high-speed transistor outputs for
precise control tasks.
Key Features:
1. Input/Output Configuration:
Total I/O Points: 16 (8 digital inputs and 8 transistor outputs).
Input Type: Digital inputs compatible with standard industrial signals, supporting NPN
and PNP configurations.
Output Type: Transistor outputs, suitable for fast and precise control of devices such as
stepper motors, solenoids, and actuators.
2. Processing Speed:
Fast processing capability for real-time automation, providing reliable performance in
control systems.
3. Program Capacity:
Program Memory: Up to 2,000 steps, suitable for basic to moderately complex
automation applications.
4. Pulse Control:
Supports high-speed pulse output, ideal for motion control applications requiring speed
and precision.
5. Communication Interface:
Includes a built-in RS-232 communication port for connecting with programming tools,
HMIs, or SCADA systems.
6. Expandability:
Allows for limited expansion to accommodate additional I/O points or enhance
functionality as needed.
7. Power Supply:
Operates on a 24V DC power supply, offering energy efficiency and stable operation.
8. Programming Software:
Configured using Delta’s WPLSoft programming software, which supports ladder
diagram programming for easy and intuitive setup.
9. Compact Design:
Small and lightweight, optimized for installation in tight spaces.
Flexible mounting options, including DIN-rail and panel mounting.
10. Applications:
Ideal for small-scale automation systems, such as:
▪ Conveyor belt systems
▪ Basic machine automation
▪ Motion control for stepper or servo motors
▪ Lighting and equipment control
▪ Simple process control
11. Durability:
Built for industrial environments with durable construction, ensuring reliable operation
under various conditions.
Technical Specifications:
• Model: DVP16SP11T
• Digital Inputs: 8
• Transistor Outputs: 8
• Pulse Output: High-speed, suitable for motion control
• Communication Port: RS-232
• Program Capacity: 2,000 steps
• Power Supply: 24V DC
• Dimensions: Compact and lightweight for efficient installation.
Key Benefits:
• High-speed transistor outputs for precise control applications.
• Compact and cost-effective solution for small automation tasks.
• Easy-to-use programming software for fast setup and deployment.
