Description

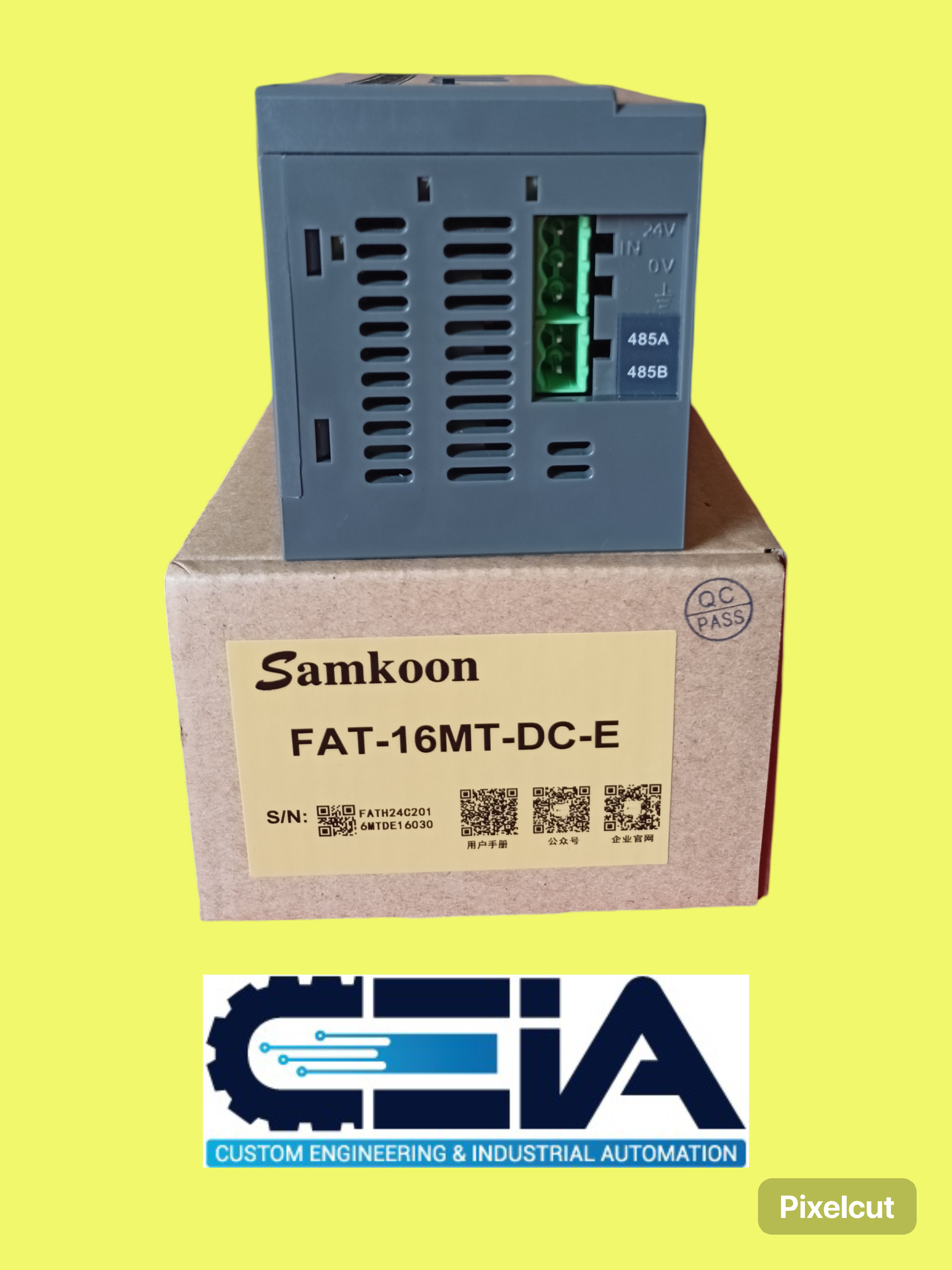

The Samkoon FAT-16MT-DC-E is a compact, micro-class Programmable Logic Controller (PLC)
designed for industrial automation. Below is a detailed breakdown of its typical features based
on industry-standard naming conventions and Samkoon’s product lineup:
Key Specifications
1. Model Breakdown:
➢ FAT: Series designation (likely a compact or basic series).
➢ 16: Total I/O points (e.g., 8 digital inputs + 8 digital outputs).
➢ MT: Transistor (T) output type (for high-speed switching, e.g., controlling
solenoids, LEDs, or relays via external circuitry).
➢ DC: 24V DC power supply (common industrial voltage).
➢ E: May denote “Economy” or “Enhanced” features, or compliance with
regional standards (e.g., CE certification).
2. I/O Configuration:
➢ Digital Inputs: Typically 8–16 points (24V DC, sinking/sourcing
configurable).
➢ Transistor Outputs: 8–16 points (NPN/PNP, 0.5A–1A per point, suitable
for DC loads).
➢ High-Speed Counting: Likely supports pulse inputs (e.g., encoders or
sensors).
3. Power Supply:
➢ Operating Voltage: 24V DC (±15% tolerance).
➢ Power Consumption: Low power draw (exact specs depend on load).
4. Communication:
➢ Built-in Ports: RS-232/RS-485 for HMI/SCADA integration (e.g., Modbus
RTU protocol).
➢ Ethernet Option: Some models include Ethernet for remote monitoring
(check if “E” denotes Ethernet support).
5. Programming:
➢ Software: Samkoon Pro or similar IDE (supports ladder logic, function
block diagrams, etc.).
➢ Memory: Flash memory for program storage (size varies; sufficient for
small to medium logic tasks).
6. Expandability:
➢ Modules: May support expansion I/O modules (e.g., analog or additional
digital I/O).
7. Environment:
➢ Operating Temperature: -10°C to 55°C (industrial-grade durability).
➢ Certifications: CE, RoHS, and possibly IP20 protection.
Typical Applications
• Small automation systems (e.g., packaging machines, conveyor control).
• Batch process control.
• Integration with HMIs (e.g., Samkoon HMI panels) for operator interfaces.
