Description

NVVV MDR-100-24 DIN-Rail Power Supply (24V, 4.0A, 96W)

The NVVV MDR-100-24 is an industrial-grade, single-output DIN-rail switching power supply engineered to deliver stable and efficient power to your automation systems, control panels, and electronics. With its slim, space-saving design, it easily snaps onto standard TS-35 DIN rails, making it an ideal choice for compact control cabinets.

Key Features

• Stable Output & High Efficiency: Delivers a reliable 24V DC output at up to 4.0A, providing a consistent 96W of power for industrial loads.

• Universal AC Input: Supports a wide input voltage range of 100–240VAC (50/60Hz), making it compatible with global power grids.

• Adjustable Output Voltage: Includes a front-facing +V ADJ trimmer to fine-tune the output voltage to compensate for line drops.

• Smart Monitoring: Features a built-in DC OK LED indicator and a dedicated DC OK relay contact (rated up to 30VDC/1A) for seamless integration with PLCs or external alarm circuits.

• Certified Quality: Manufactured under ISO9001 quality management standards and carries standard CE markings for compliance and safety.

  Technical Specifications

  Parameter	Value / Details
  Brand	NVVV
  Model	MDR-100-24
  Input Voltage	100–240VAC, 1.3A (50/60Hz)
  Output Voltage	24V DC
  Output Current	4.0A
  DC OK Relay Contact	Max. 30VDC / 1A
  Adjustability	Built-in +V ADJ potentiometer
  Certifications	CE, ISO9001
  Mounting Type	DIN-Rail (TS-35)

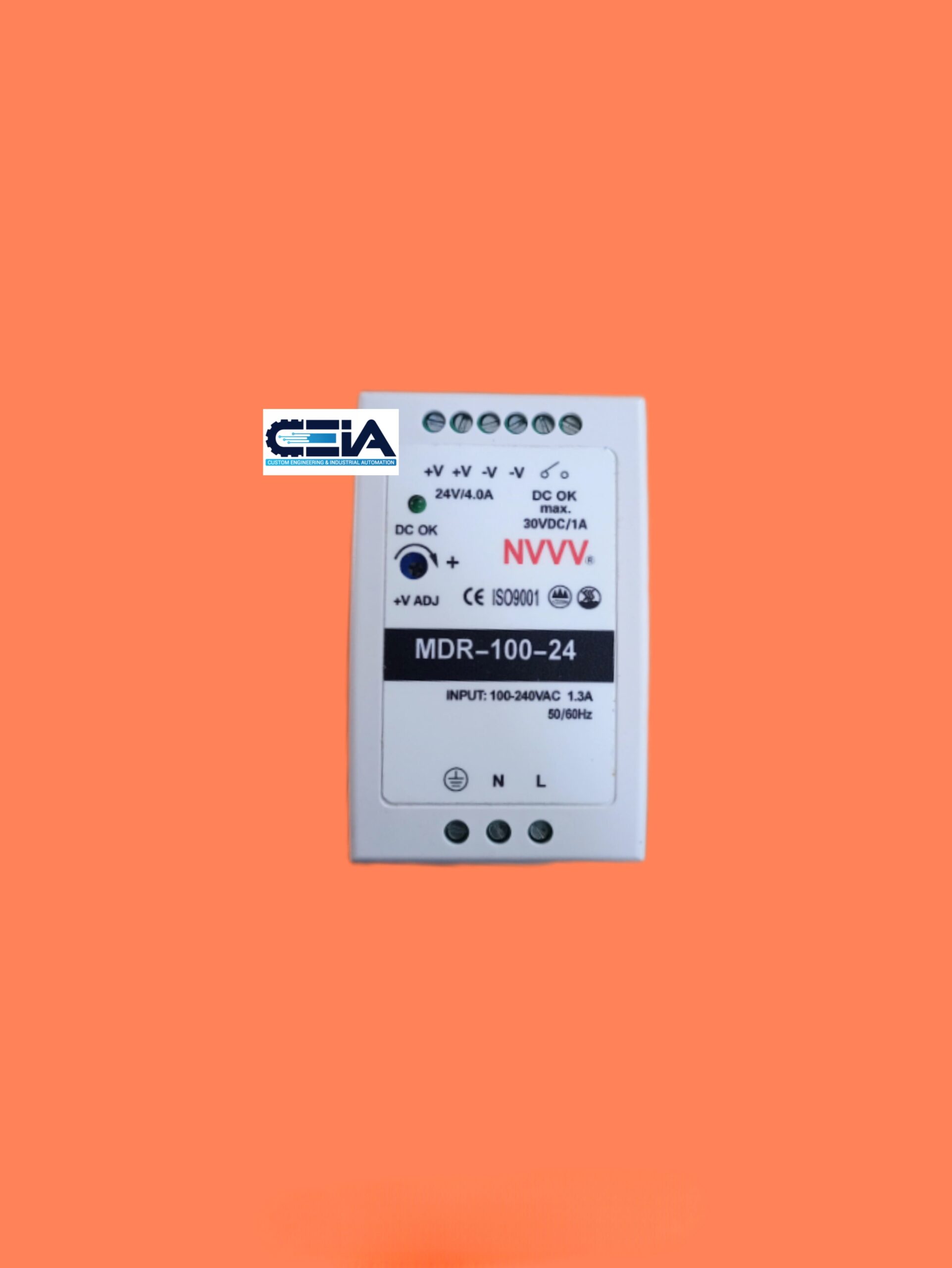

  Terminal Layout

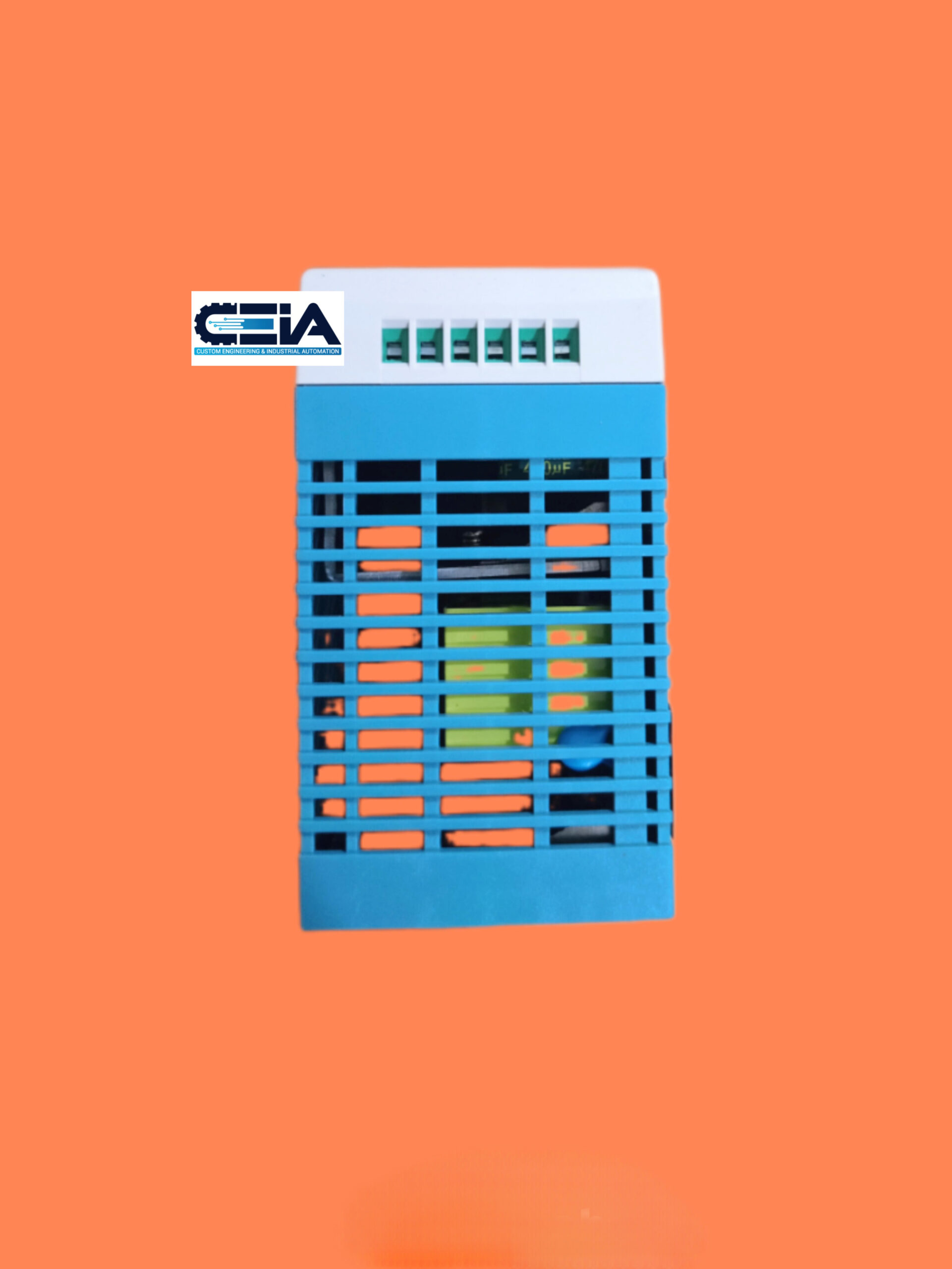

  • Top Terminals: +V, +V, -V, -V, and the DC OK relay signal contacts.

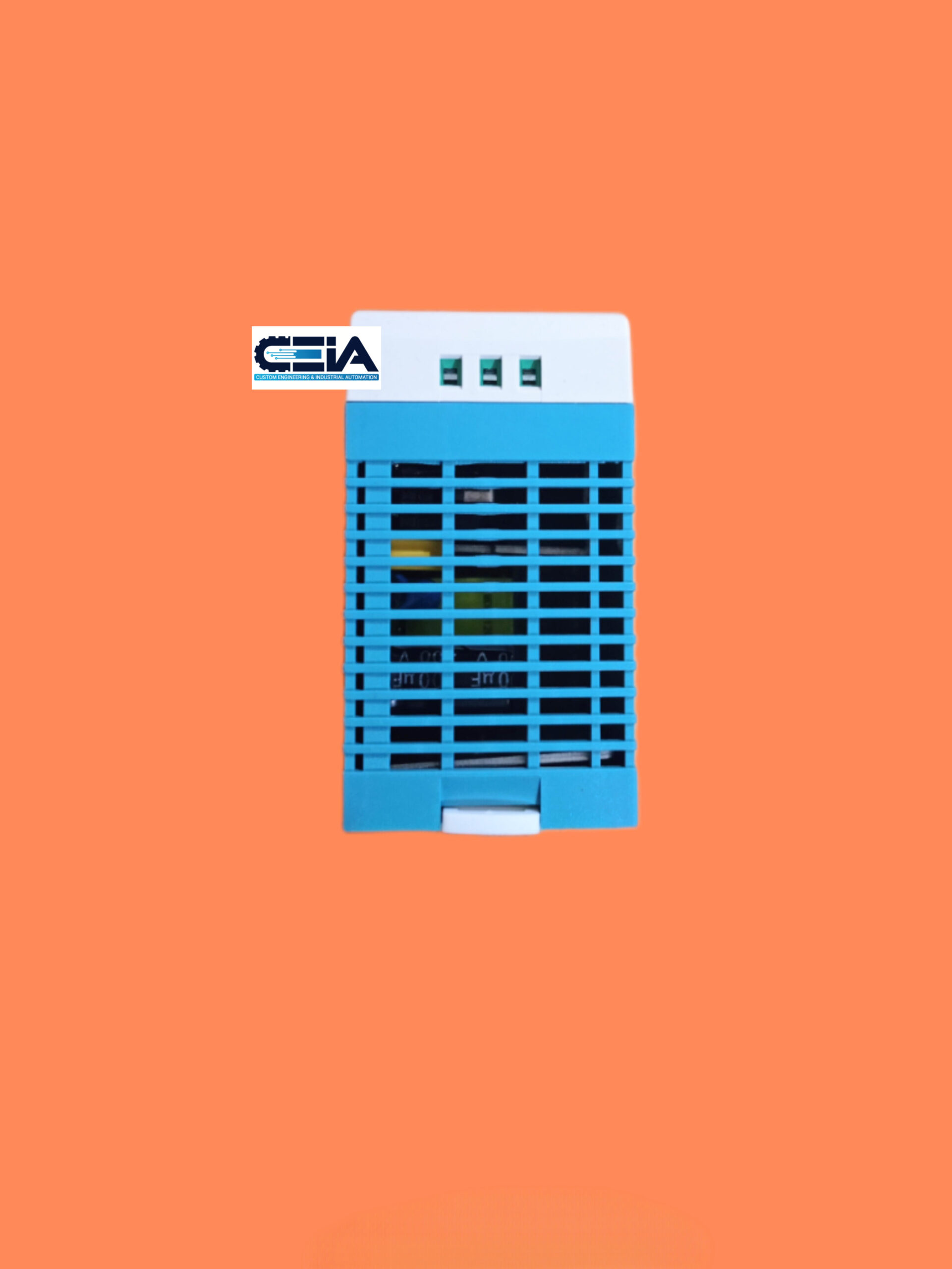

  • Bottom Terminals: Ground ( ), Neutral (N), and Line (L) inputs.
